How to Replace a Throttle Position Sensor

a throttle position sensor

The throttle position sensor (TPS) is used to inform the powertrain control module (PCM) of throttle position. The PCM uses this information to determine control of various output devices, such as the fuel injectors, transmission shift solenoids, etc. Basically, the throttle position sensor is a variable resistor. Its internal resistance and output signal voltage change in relation to throttle position. Some common symptoms of a failed throttle position sensor include hesitation, poor acceleration, rough idle, increased emissions and an illuminated Check Engine Light.

Materials Needed

Part 1 of 2: Removing the throttle position sensor

locating the throttle position sensor

Step 1: Locate the sensor. The throttle position sensor is mounted to the throttle body on top of the engine.

disconnect the negative battery cable

Step 2: Disconnect the negative battery cable. Disconnect the negative battery cable and set it aside.

removing the electrical connector

Step 3: Remove the sensor electrical connector. Remove the electrical connector by pushing down on the tab and sliding it off.

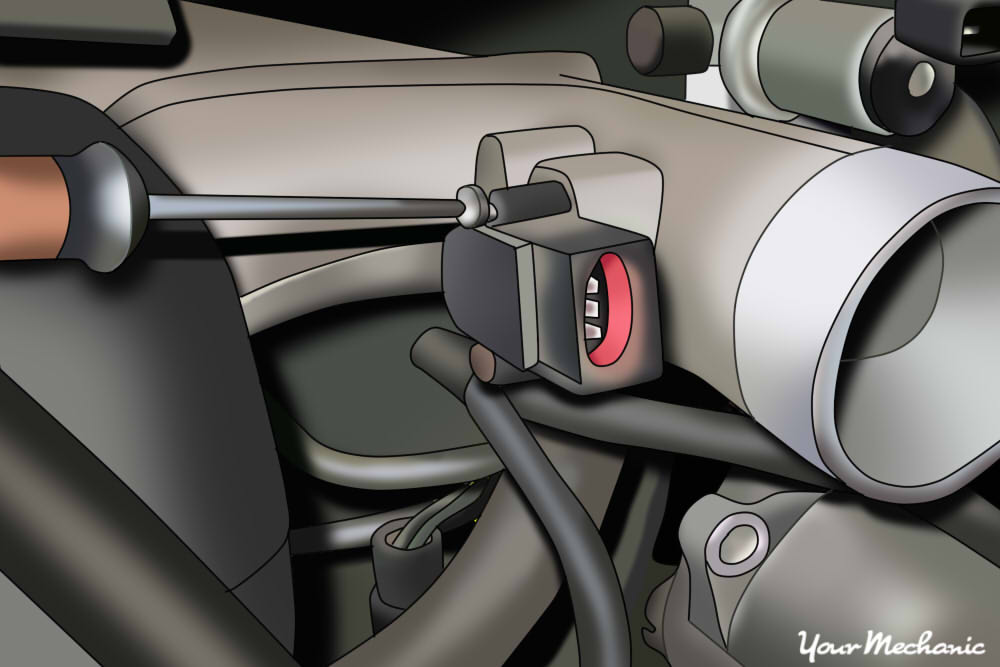

removing the sensor mounting screws

Step 4: Remove the sensor mounting screws. Remove the sensor mounting screws using a screwdriver.

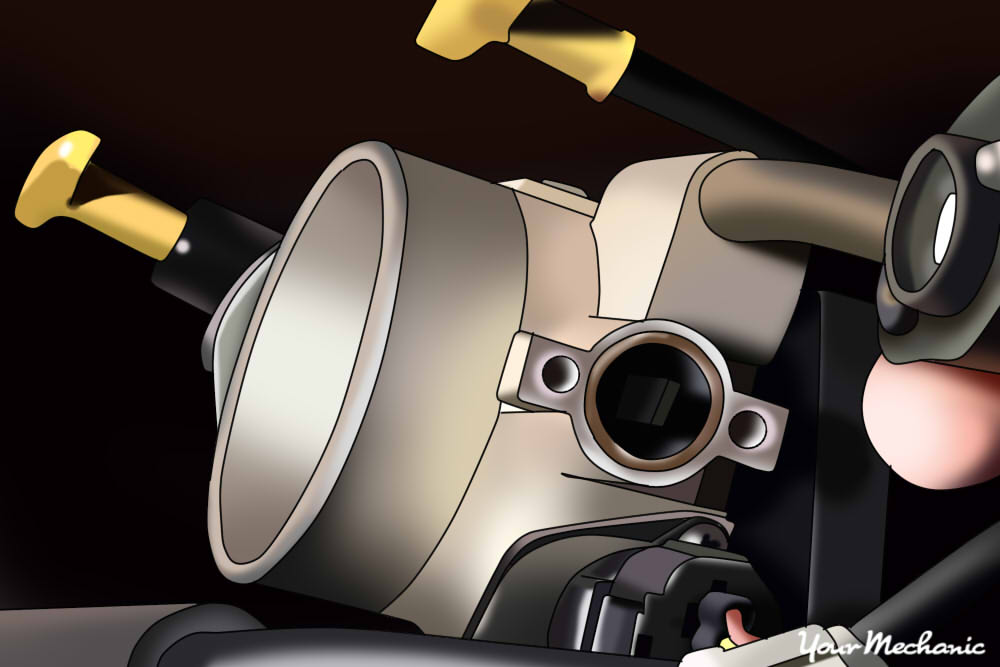

removing the sensor mounting screws

Step 5: Remove the sensor. Remove the sensor from the engine.

Part 2 of 2: Installing the new throttle position sensor

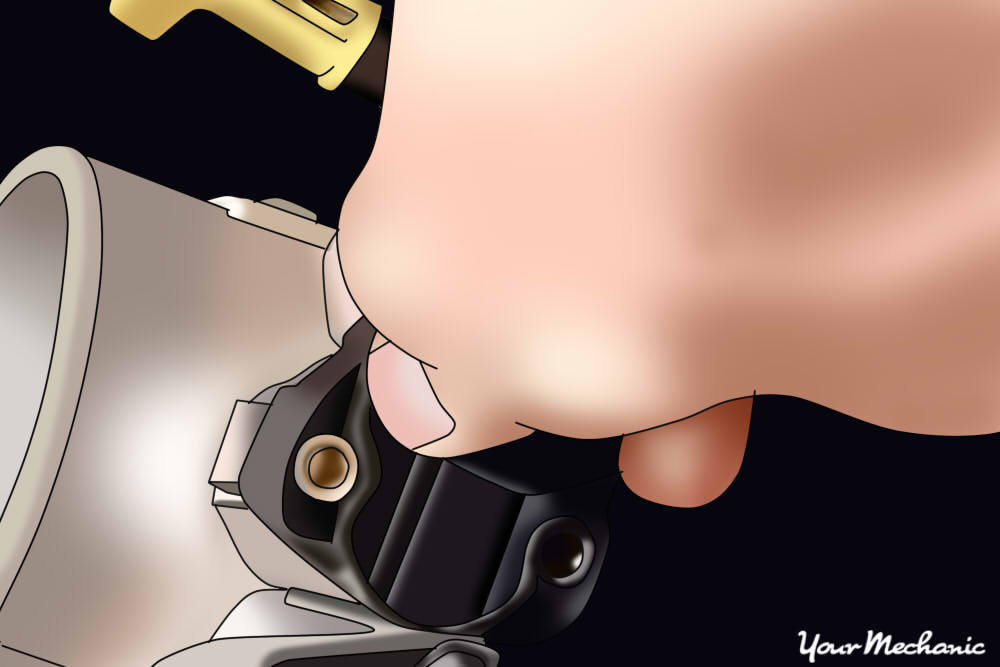

Installing the new sensor

Step 1: Install the new sensor. Mount the new sensor in place.

installing the sensor mounting screws

Step 2: Install the sensor mounting screws. Install the sensor mounting screws by hand one at a time. Then tighten them down using a screwdriver.

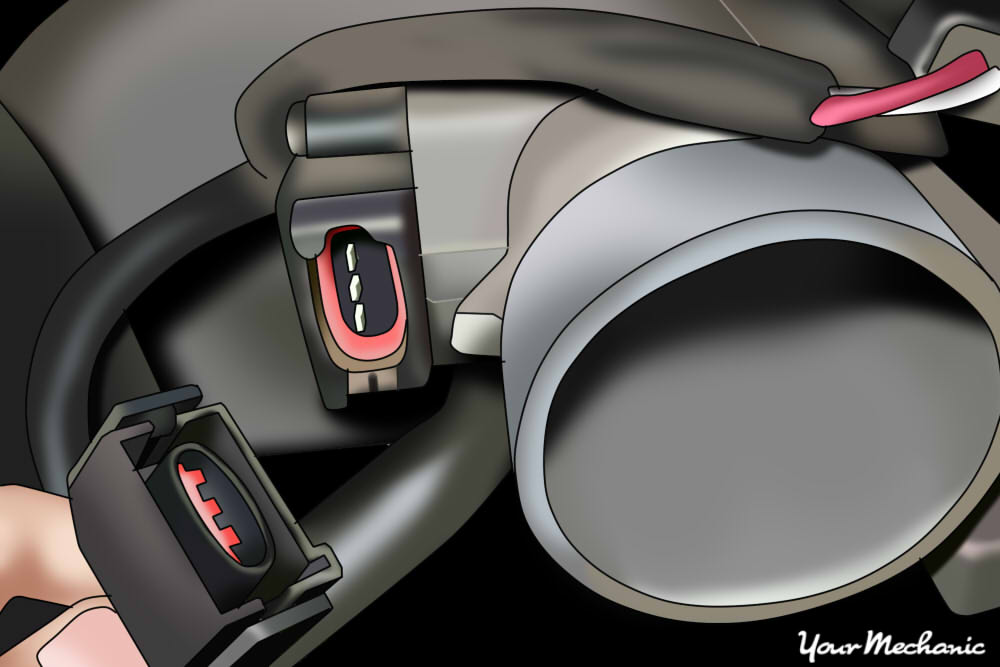

reinstalling the electrical connector

Step 3: Reinstall the electrical connector. Reinstall the connector the same way you removed it.

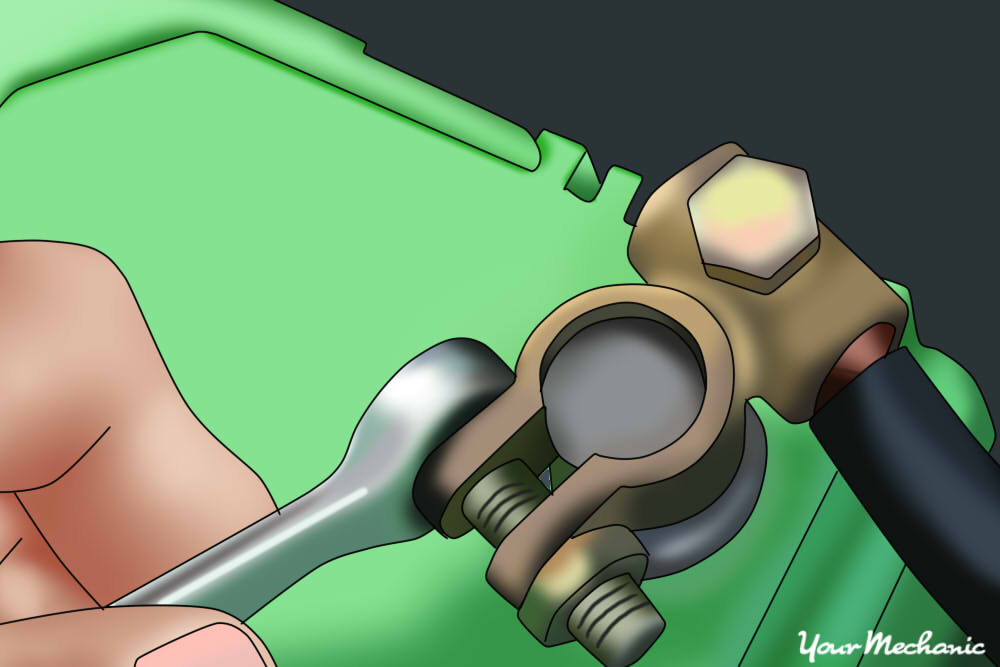

reinstalling the battery negative cable

Step 4: Reinstall the negative battery cable. Reconnect the negative terminal to the battery.

adjusting the throttle position sensor

Step 5: Adjust the throttle position sensor as needed. While most throttle position sensors do not require adjustment, there are a few that do.

Typically, adjustment involves connecting a voltmeter with back probe leads to the sensor signal wire and ground. Then, with the engine running, loosen the sensor screws.

Rotate the sensor until the desired reading is achieved. If your vehicle requires throttle position sensor adjustment, consult the factory repair information for the exact specifications.

That’s what it takes to replace your throttle position sensor. If this seems like something you’d prefer to leave to a professional, YourMechanic offers expert throttle position sensor replacement performed at your home or office..
